For my fall semester multi-tool class, I created a 3-dimensional multi-tool based on the mechanics and manufacturing techniques used by the original Leatherman survival tool made by Tim Leatherman.
![](https://cdn.myportfolio.com/5299adeae47c15f9aef8d26c8d09eb0a/2bc4e5d0-7347-4f62-8dd3-c921c9f5fe2a_rw_1920.png?h=1ad0c08e57da0ca7e910b21f9b424e61)

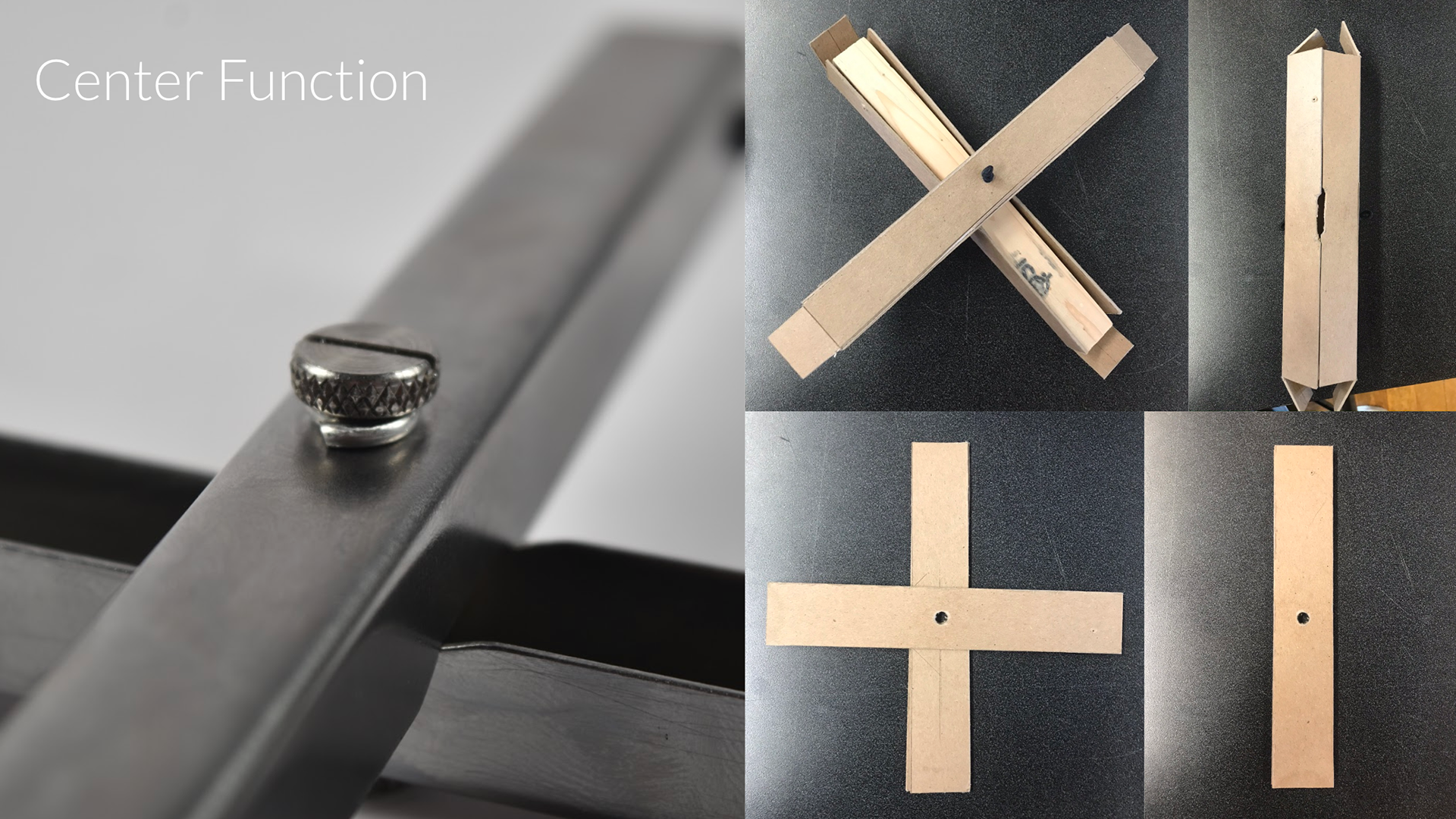

My original plan was to create a multi-tool with no correct orientation using the toy, called KO Sticks, as mechanical reference for what I wanted my center function to mimic. This proved to be too complicated and I had to take a step back and consider where I should center my focus.
![](https://cdn.myportfolio.com/5299adeae47c15f9aef8d26c8d09eb0a/9415f8a5-090f-4157-a573-53b94670ae34_rw_1920.png?h=2a2e0402e2c81f9d63c8a13936ed7a44)
![](https://cdn.myportfolio.com/5299adeae47c15f9aef8d26c8d09eb0a/693c2ad7-7eda-4fc9-b5b0-4da808d84d6b_rw_1920.png?h=25b27f051e17b1b98d0e5abcde063783)
![](https://cdn.myportfolio.com/5299adeae47c15f9aef8d26c8d09eb0a/d07e0291-6b1b-434b-90a3-c41aae48db8f_rw_3840.jpg?h=89a242c6bedb98e2872d3a4c8afb097c)
![](https://cdn.myportfolio.com/5299adeae47c15f9aef8d26c8d09eb0a/7b97d0d8-4de8-4e6d-859a-11ef63f3d8b2_rw_3840.jpg?h=24ee23bfcad58895aab199f88a1ea632)
![](https://cdn.myportfolio.com/5299adeae47c15f9aef8d26c8d09eb0a/e89cb39a-d3ec-4e9f-a467-036e60584201_rw_3840.jpg?h=0063fca3d739e335ce1cf1c5cc7121ea)

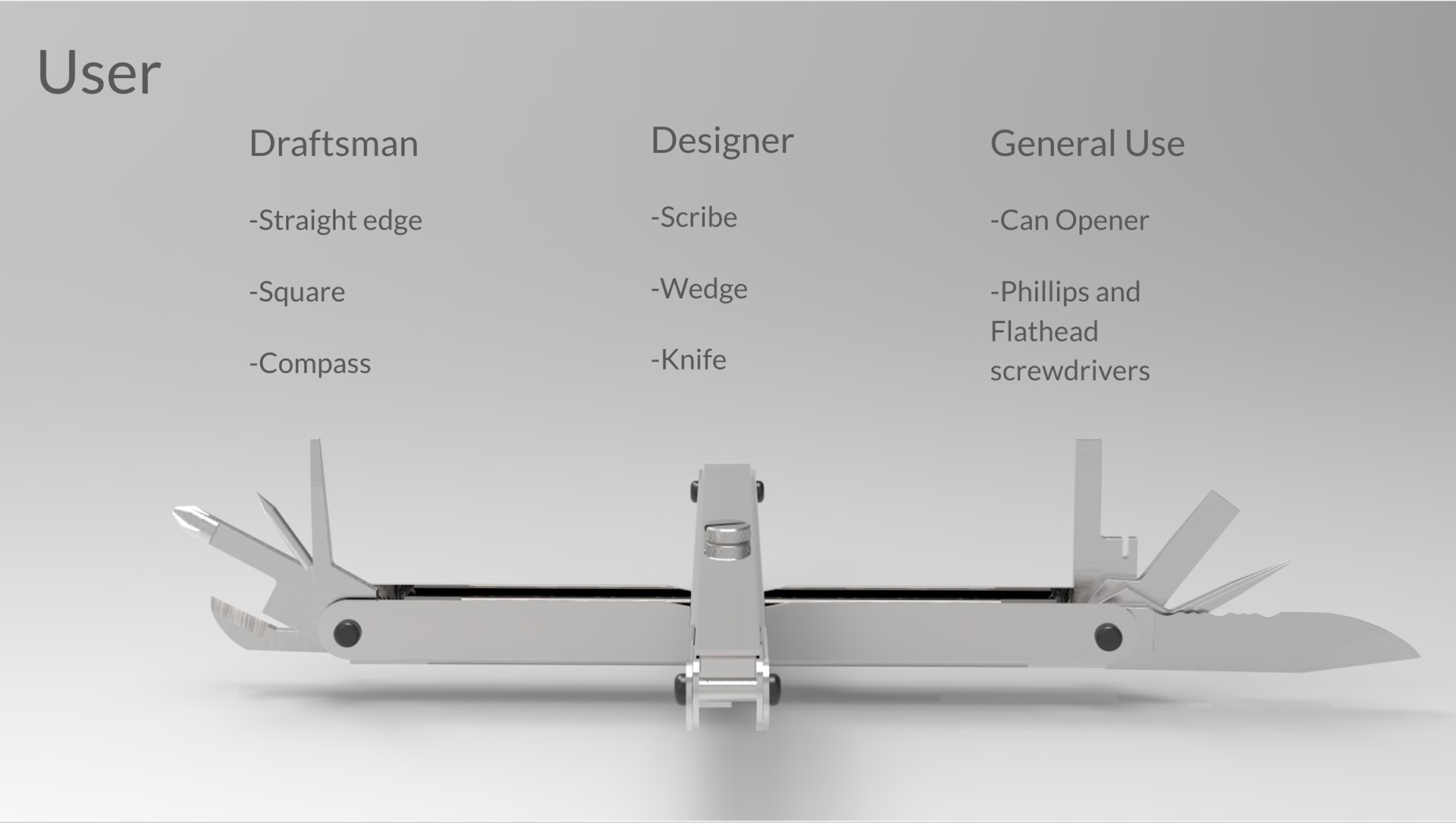

I decided to focus on the center function of the tool an make the 3D function a major part of the design without affecting the aesthetics or mechanics.
![](https://cdn.myportfolio.com/5299adeae47c15f9aef8d26c8d09eb0a/df0bedcb-f00d-401d-9a9a-39a94d983398_rw_1920.png?h=ed002740f0b78291ed8a466b592f5d9a)

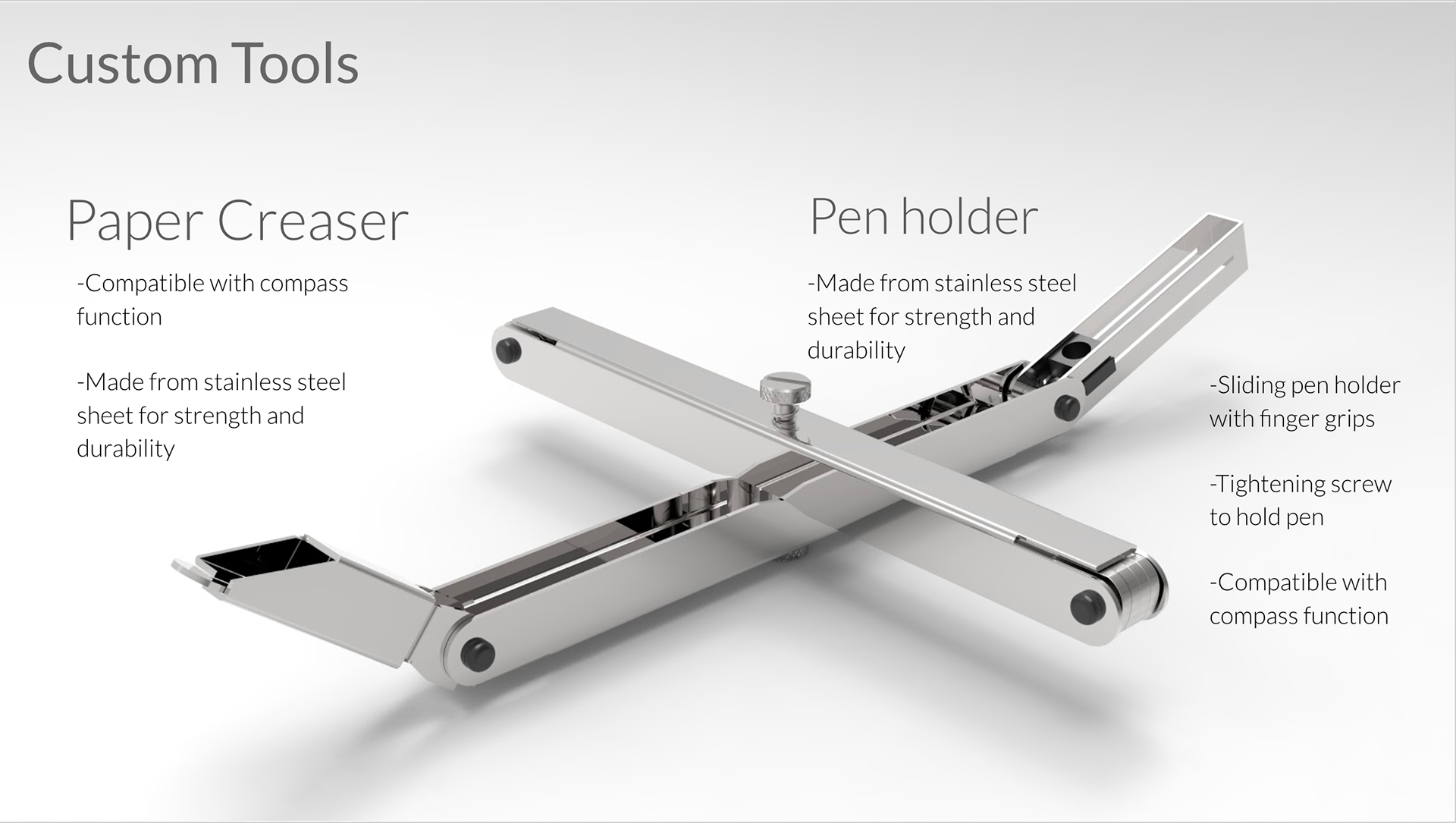

I chose bent sheet metal as a primary manufacturing technique for this project due to the existing Leatherman sheet metal manufacturing process for the body and the tools.

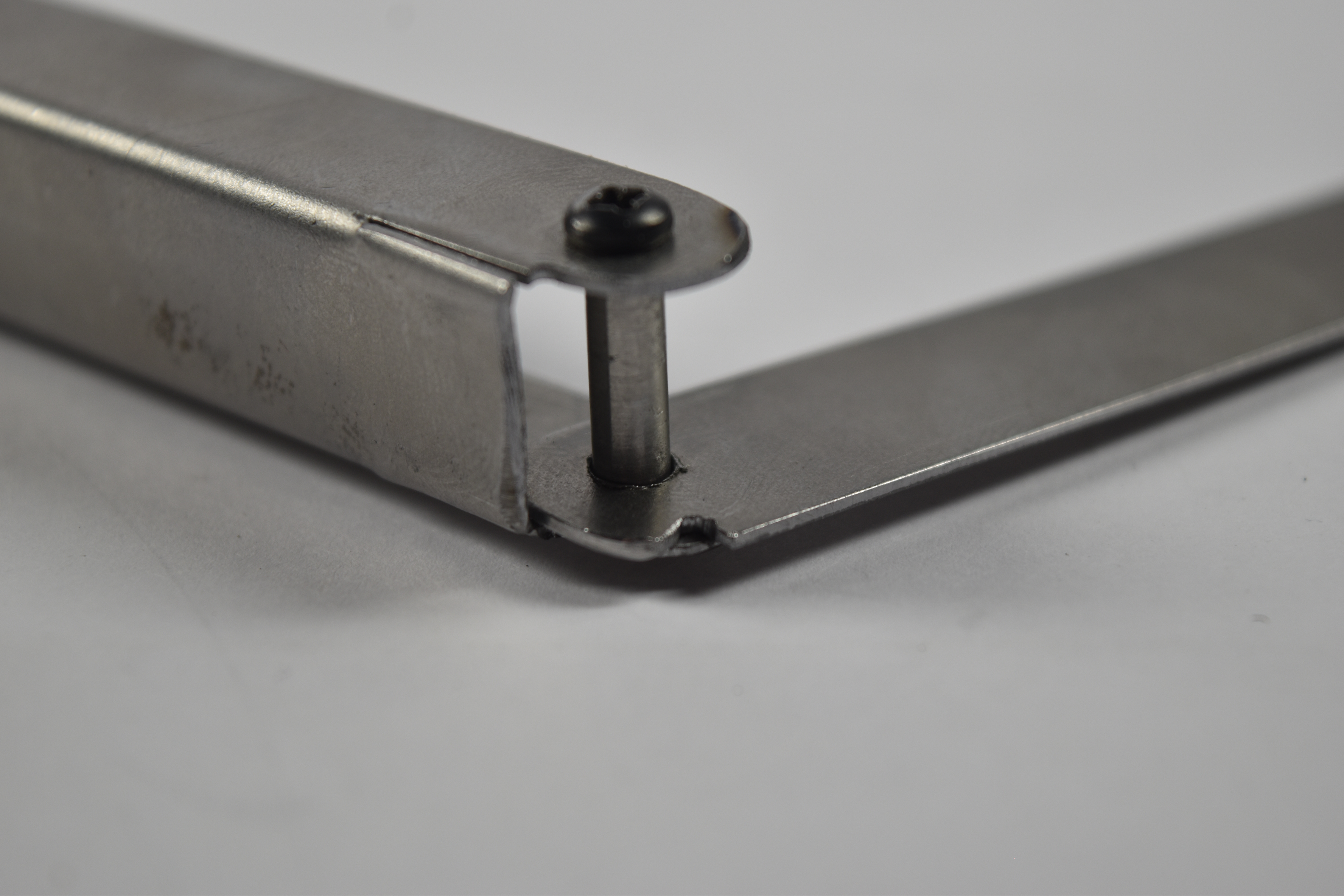

![](https://cdn.myportfolio.com/5299adeae47c15f9aef8d26c8d09eb0a/af82ba2c-cc6f-4d5f-ab99-a336eb616af3_rw_3840.jpg?h=f2306b5c78c21229146c2d0b4113c336)

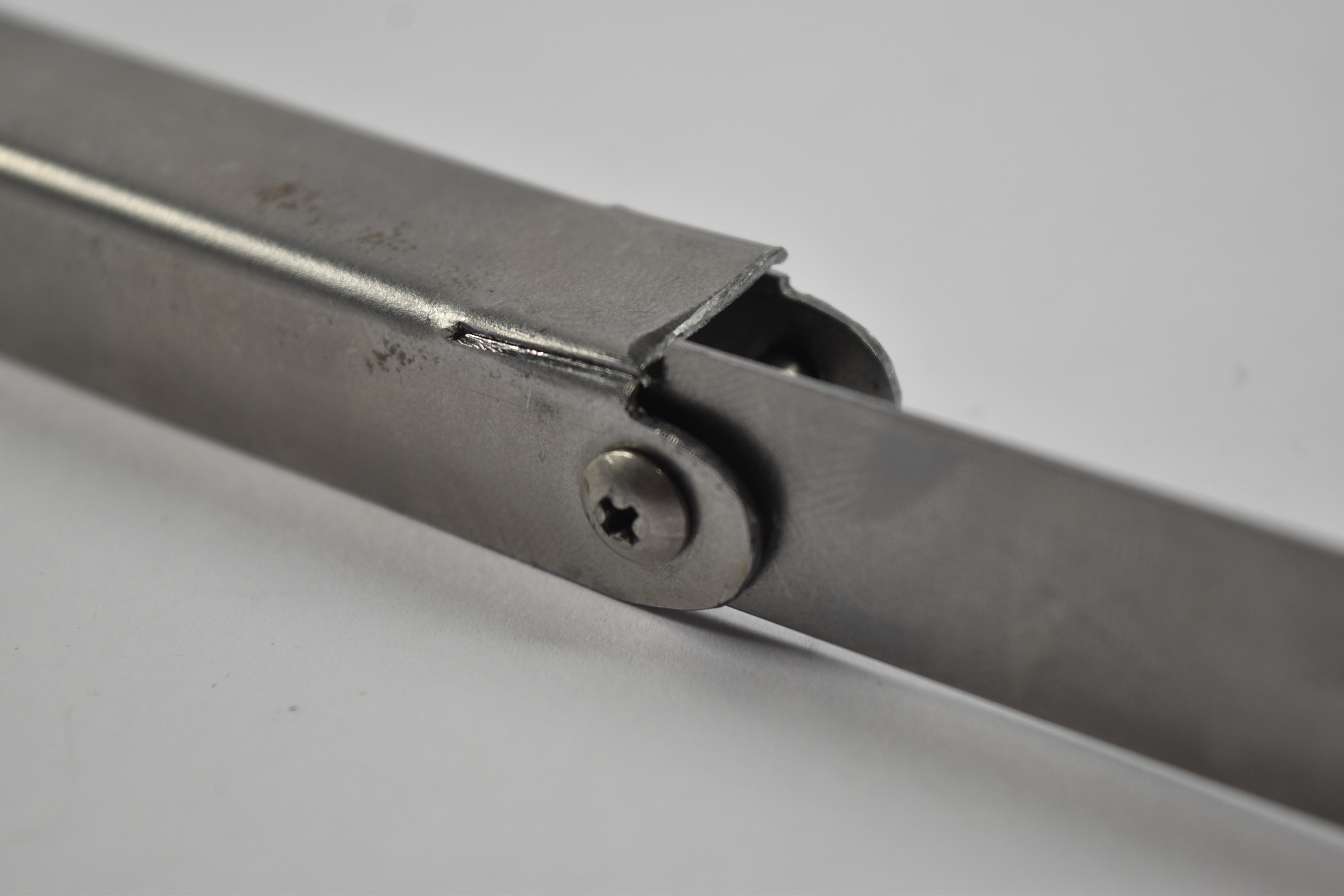

![](https://cdn.myportfolio.com/5299adeae47c15f9aef8d26c8d09eb0a/c328e1ba-a8dd-464f-a110-48103947aa99_rw_3840.jpg?h=e9b63b4c21c7c2ba1b5f7a873cd6f25f)
![](https://cdn.myportfolio.com/5299adeae47c15f9aef8d26c8d09eb0a/bb0a6bbf-24cb-44ef-98aa-4ccbda322ba0_rw_3840.jpg?h=38fd7700104b24d49ae608deb6eb7d32)
Model testing sheet metal tension lock
